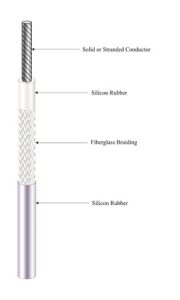

Silicon Rubber/ Braided Fiberglass/ Silicon Rubber

200°C – 250 Volts
200°C – 600 Volts
200°C – 800 Volts

Conductors
0.25 Sqmm to 16 Sqmm (300 Volt)
0.25 Sqmm to 16 Sqmm (600 Volts)
Stranded tinned copper or nickel-plated copper
(Other conductor materials available)

Silicon Rubber

Fiber Glass Braiding with Extruded Silicon Rubber

Available in Colors

1. Smaller diameter, lighter weight, and tighter bend radius
2. Intermediate fiberglass reinforcement
3. Eliminates braid fraying, flowering, and shrink-back
4. Virtually eliminates dermatitis
5. Significantly reduces airborne fiberglass contaminants traditionally found in high-volume processing
6. Superior flexibility
7. Color stable at elevated temperatures
8. LSZH (Low Smoke Zero Halogen)

Additional Features

• Silicone formulations suitable for UV, ozone, and moisture exposure
• Not suited for liquid-immersed applications
• Suitable for applications down to -60°C
